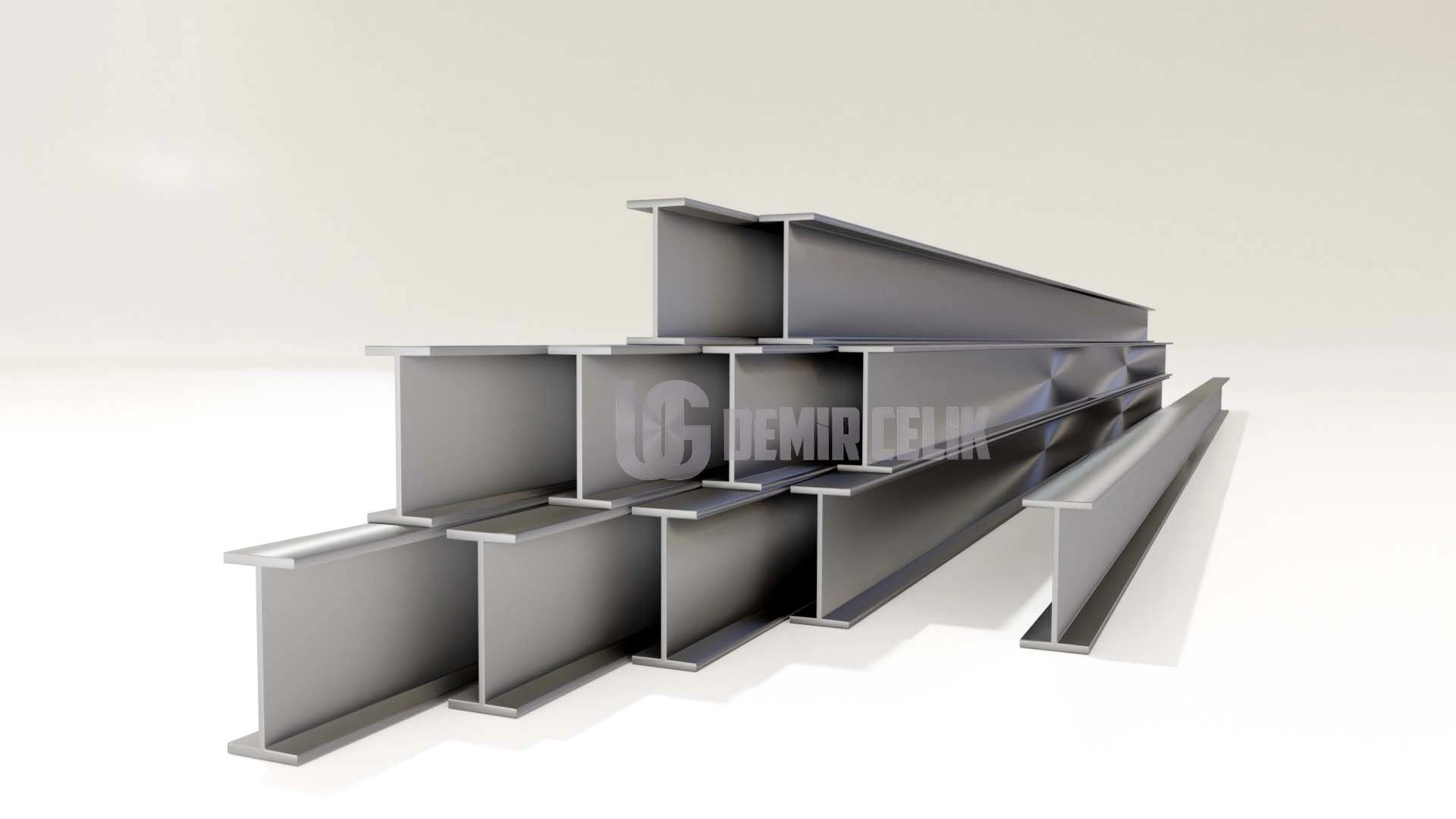

NPI
ÜRETİM STANDARDI & KESİT TOLERANSI
TS EN 10024EN 10024:1995DIN 1025-1
KALİTE
S235JRS275JR S355JR
St37-2 St44-2 St52-3
St37-2 St44-2 St52-3
İŞLEM ŞARTI
+ AR
YÜZEY STANDARDI
EN 101633-3:2004, Class C, Subclass 1
BOY
6.000 mm. 12.000 mm.
| ÜRÜN | h - mm. | b - mm. | t - mm. | kg. / m. |
|---|---|---|---|---|
| NPI 80 | 80,0 | 42,0 | 3,9 | 5,94 |
| NPI 100 | 100,0 | 50,0 | 4,5 | 8,34 |
| NPI 120 | 120,0 | 58,0 | 5,1 | 11,10 |
| NPI 140 | 140,0 | 66,0 | 5,7 | 14,30 |
| NPI 160 | 160,0 | 74,0 | 6,3 | 17,90 |
| NPI 180 | 180,0 | 82,0 | 6,9 | 21,90 |
| NPI 200 | 200,0 | 90,0 | 7,5 | 26,20 |
| NPI 220 | 220,0 | 98,0 | 8,1 | 31,10 |
| NPI 240 | 240,0 | 106,0 | 8,7 | 36,20 |
| NPI 260 | 260,0 | 113,0 | 9,4 | 41,90 |
| NPI 280 | 280,0 | 119,0 | 10,1 | 47,90 |
| NPI 300 | 300,0 | 125,0 | 10,8 | 54,20 |
| NPI 320 | 320,0 | 131,0 | 11,5 | 61,00 |
| NPI 340 | 340,0 | 137,0 | 12,2 | 68,00 |
| NPI 360 | 360,0 | 143,0 | 13,0 | 76,10 |
| NPI 380 | 380,0 | 149,0 | 13,7 | 84,00 |
| NPI 400 | 400,0 | 155,0 | 14,4 | 92,40 |
| NPI 450 | 450,0 | 170,0 | 16,2 | 115,00 |
| NPI 500 | 500,0 | 185,0 | 18,0 | 141,00 |
| NPI 550 | 550,0 | 200,0 | 19,0 | 166,00 |
