Hadde Mamülleri Lama

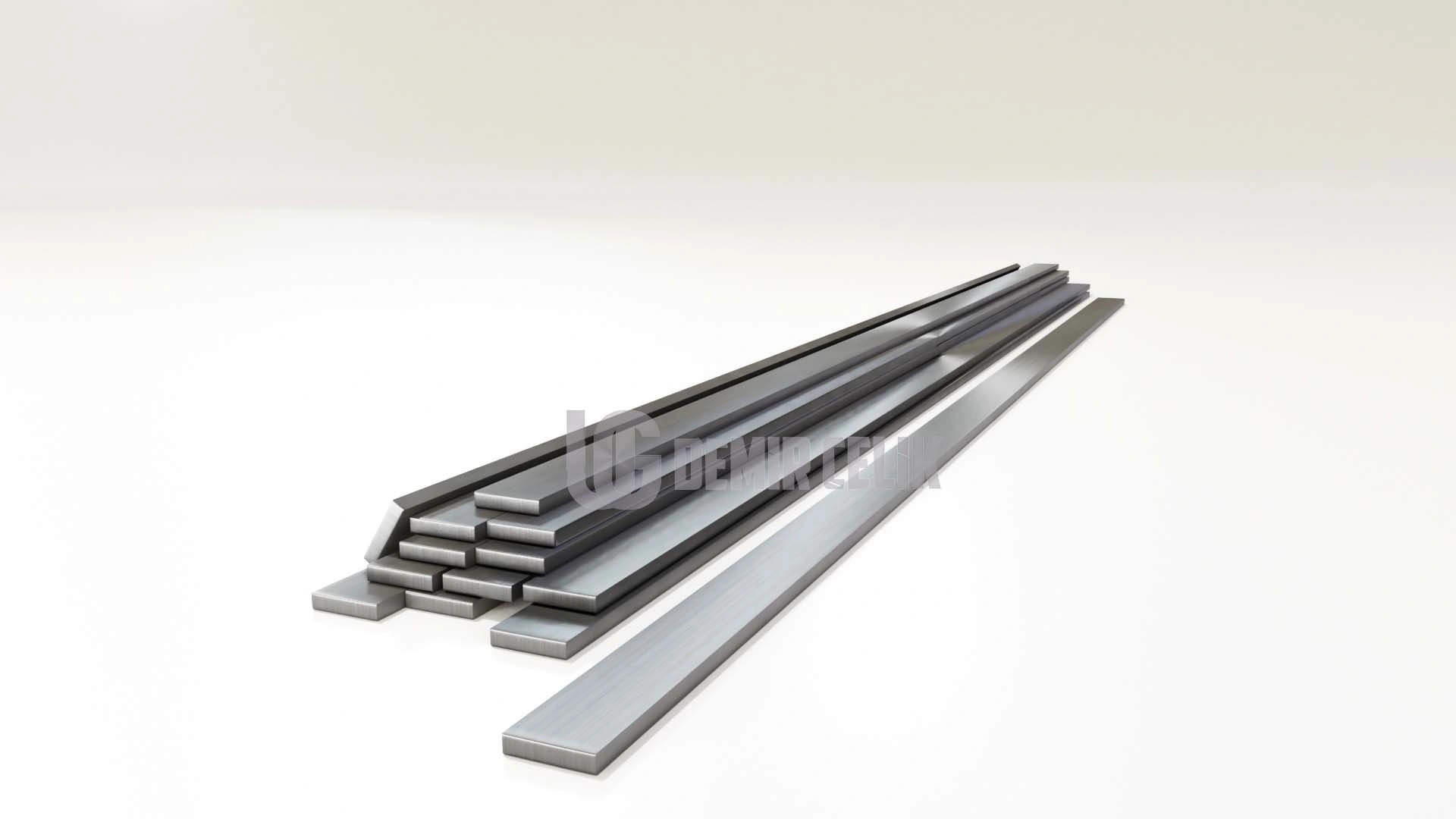

Lama

ÜRETİM STANDARDI & KESİT TOLERANSI
EN 10058DIN 1017ASTM A6/A6M
KALİTE
S235JRS275JR E295 S355JR E335E360
St37-2 St44-2 St50-2 St52-3 St60-2 St70-2
ASTM A36 ASTM A529 Grade 50 ASTM A572 Grade 50
C10 C15 C20 C25 C30 C35 C40 C45 C50 C55 C60 C70
SAE1020 SAE1030 SAE 1040 SAE 1045 SAE 1050 SAE 1060 SAE 1070
İŞLEM ŞARTI
+ AR
YÜZEY STANDARDI
EN 101633-3:2004, Class C, Subclass 1
BOY
5.500 mm. 5.800 mm. 6.000 mm. 6.100 mm 12.000 mm.

GENİŞLİK - mm. KALINLIK - mm.
3.0 4.0 5.0 6.0 8.0 10.0 12.0 15.0 20.0 25.0 30.0 35.0 40.0 50.0
10 0,236 0,314 0,393
12 0,283 0,377 0,471 0,565
14 0,330 0,440 0,550 0,659 0,879
15 0,353 0,471 0,589 0,707 0,942
16 0,377 0,502 0,628 0,754 1,005 1,256
20 0,471 0,628 0,785 0,942 1,256 1,570 1,884 2,355
25 0,589 0,785 0,981 1,178 1,570 1,963 2,355 2,944 3,925
30 0,707 0,942 1,178 1,413 1,884 2,355 2,826 3,533 4,710 5,888
35 0,824 1,099 1,374 1,649 2,198 2,748 3,297 4,121 5,495 6,869
40 0,942 1,256 1,570 1,884 2,512 3,140 3,768 4,710 6,280 7,850 9,420
45 1,060 1,413 1,766 2,120 2,826 3,533 4,239 5,299 7,065 8,831
50 1,178 1,570 1,963 2,355 3,140 3,925 4,710 5,888 7,850 9,813 11,775 13,738 15,700
60   1,884 2,355 2,826 3,768 4,710 5,622 7,065 9,420 11,775 14,130 16,485 18,840
65       3,062 4,082 5,103 6,123 7,654 10,205 12,756 15,308 17,859 20,410
70     2,748 3,297 4,396 5,495 6,594 8,243 10,990 13,738 16,485 19,233 21,980
75       3,533 4,710 5,888 7,065 8,831 11,775 14,719 17,663 20,606 23,550
80     3,140 3,768 5,024 6,280 7,536 9,420 12,560 15,700 18,840 21,980 25,120 31,400
90       4,239 5,652 7,065 8,478 10,598 14,130 17,663 21,195 24,728 28,260
100     3,925 4,710 6,280 7,850 9,420 11,775 15,700 19,625 23,550 27,475 31,400 39,250
110         6,908 8,635 10,362 12,953 17,270 21,588 25,905 30,223 34,540
120         7,536 9,420 11,304 14,130 18,840 23,550 28,260 32,970 37,680 47,100
130         8,164 10,205 12,246 15,308 20,410 25,513 30,615 35,718 40,820
140         8,792 10,990 13,188 16,485 21,980 24,475 32,970 38,465 43,960
150         9,420 11,775 14,130 17,663 23,550 29,438 35,325 41,213 47,100
BİRİM AĞIRLIK - kg/m >
