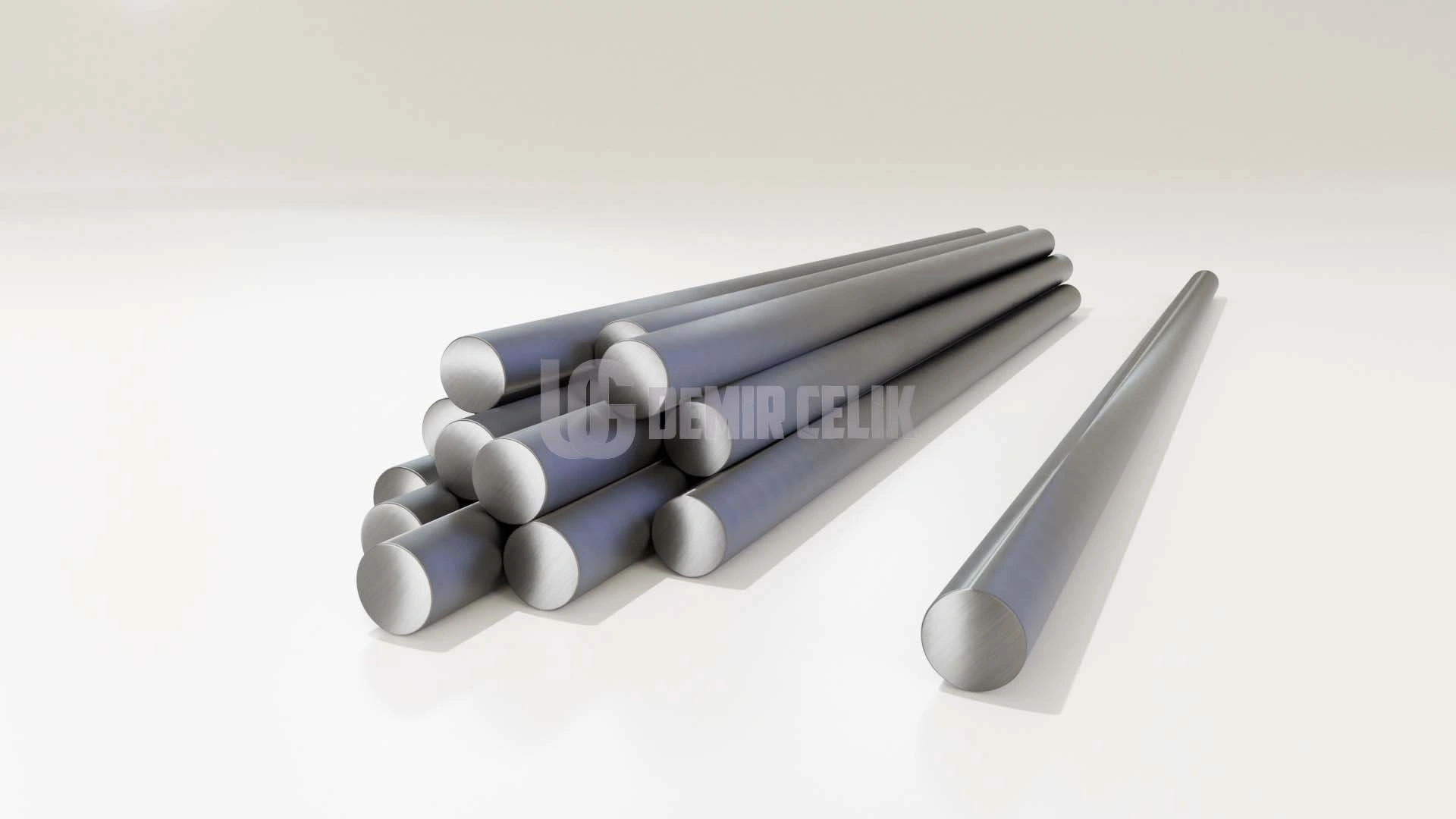

Düz Yuvarlak
ÜRETİM STANDARDI & KESİT TOLERANSI
EN 10060DIN 1013ASTM A6/A6M
KALİTE
S235JRS275JRS355JR
St37-2St44-2St52-3
ASTM A36ASTM A529 Grade 50ASTM A572 Grade 50
C10C15C20C25C30C35C40C45C50C55C60C70
SAE1020SAE1030SAE1040SAE1045SAE1050SAE1060SAE1070
ASTM A615 Grade 40ASTM A615 Grade 60
St37-2St44-2St52-3
ASTM A36ASTM A529 Grade 50ASTM A572 Grade 50
C10C15C20C25C30C35C40C45C50C55C60C70
SAE1020SAE1030SAE1040SAE1045SAE1050SAE1060SAE1070
ASTM A615 Grade 40ASTM A615 Grade 60
İŞLEM ŞARTI
+ AR
YÜZEY STANDARDI
EN 101633-3:2004, Class C, Subclass 1
BOY
5.500 mm.5.800 mm.6.000 mm.6.100 mm12.000 mm.
| ÇAP - mm | BİRİM AĞIRLIK - kg/m |
|---|---|
| 6.0 | 0,222 |
| 8.0 | 0,394 |
| 10.0 | 0,616 |
| 12.0 | 0,887 |
| 14.0 | 1,208 |
| 15.0 | 1,387 |
| 16.0 | 1,578 |
| 18.0 | 1,997 |
| 19.0 | 2,225 |
| 20.0 | 2,465 |
| 22.0 | 2,983 |
| 24.0 | 3,550 |
| 25.0 | 3,851 |
| 26.0 | 4,166 |
| 27.0 | 4,492 |
| 28.0 | 4,831 |
| 30.0 | 5,546 |
| 32.0 | 6,310 |
| 35.0 | 7,549 |
| 36.0 | 7,986 |
| 38.0 | 8,898 |
| 40.0 | 9,860 |
| 45.0 | 12,479 |
| 50.0 | 15,406 |
| 55.0 | 18,641 |
| 60.0 | 22,184 |
| 65.0 | 26,036 |
| 70.0 | 30,195 |
| 75.0 | 34,663 |
| 80.0 | 39,438 |
